YJV32 YJLV32 YJY33 YJLY33 12/20kV三芯交联聚乙烯绝缘钢带铠装聚氯乙烯/聚乙烯护套电力电缆
12/20kV 3-Core XLPE Insulated Steel Wire Armoured PVC/PE Sheathed Power Ccble
标称截面
Nominal
Cross-sectional area
mm2
导体直径
Diameter
of
conductor
mm
绝缘厚度
Insulation
thickness
mm
外护套厚度
Outer
sheath
thickness
mm
电缆近似外径
Approx.
overall
diameter
mm
电缆近似重量
Cable Approx.weight
kg/km
YJV32
YJY33
YJLV32
YJLY33
35
7.0
5.5
3.0
60.7
5970
5330
50
8.3
5.5
3.1
63.8
6730
5810
70
9.8
5.5
3.2
67.3
7720
6430
95
11.5
5.5
3.3
72.8
9640
7890
120
12.9
5.5
3.4
76.1
10800
8580
150
14.5
5.5
3.6
79.9
12180
9410
185
16.0
5.5
3.7
83.5
13600
10180
240
18.3
5.5
3.8
89.0
15850
11420
300
20.5
5.5
4.0
94.3
18260
12720
400
23.5
5.5
4.3
101.5
22100
14710
500
26.7
5.5
4.5
108.6
25950
16710
630
29.9
5.5
4.7
116.7
30690
19050
YJV22 YJLV22 YJY23 YJLY23 18/20 18/30kV三芯交联聚乙烯绝缘钢带铠装聚氯乙烯/聚乙烯护套电力电缆
18/20 18/30kV 3-Core XLPE Insulated Steel Tape PVC/PE Sheathed Power Ccble
标称截面
Nominal
Cross-sectional area
mm2
导体直径
Diameter
of
conductor
mm
绝缘厚度
Insulation
thickness
mm
外护套厚度
Outer
sheath
thickness
mm
电缆近似外径
Approx.
overall
diameter
mm
电缆近似重量
Cable Approx.weight
kg/km
YJV22
YJY23
YJLV22
YJLY23
50
8.3
8.0
3.3
75.1
7200
6250
70
9.8
8.0
3.5
78.7
8230
6910
95
11.5
8.0
3.6
84.0
9410
7620
120
12.9
8.0
3.8
87.5
11120
8870
150
14.5
8.0
3.9
91.3
12400
9580
185
16.0
8.0
4.0
94.9
13910
10450
240
18.3
8.0
4.2
100.3
16080
11590
300
20.5
8.0
4.3
105.6
18500
12850
400
23.5
8.0
4.6
112.8
21920
14410

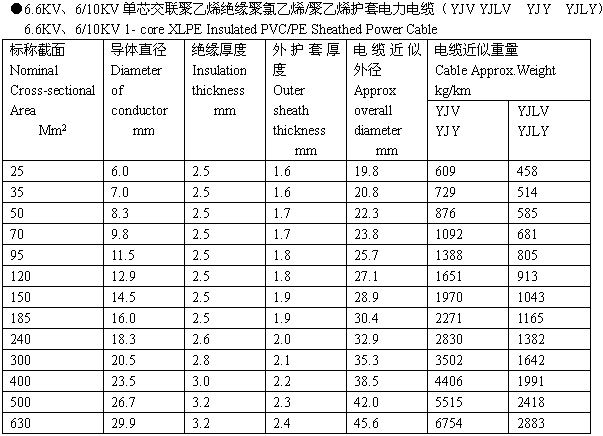

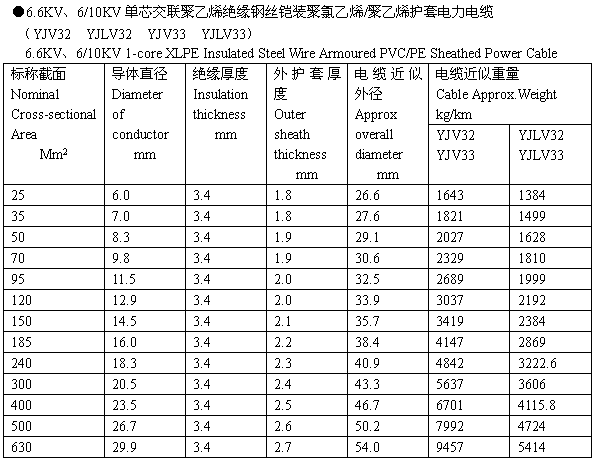

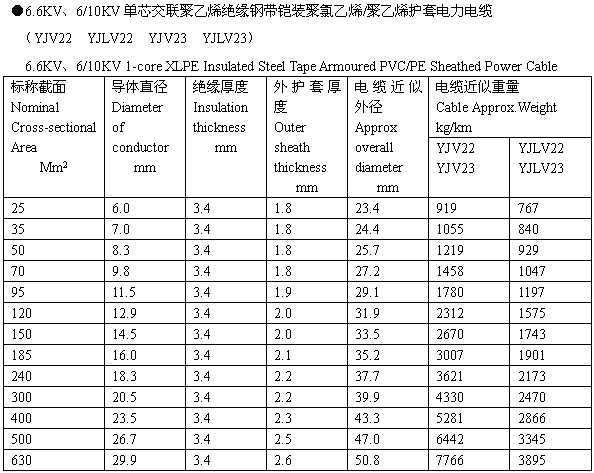

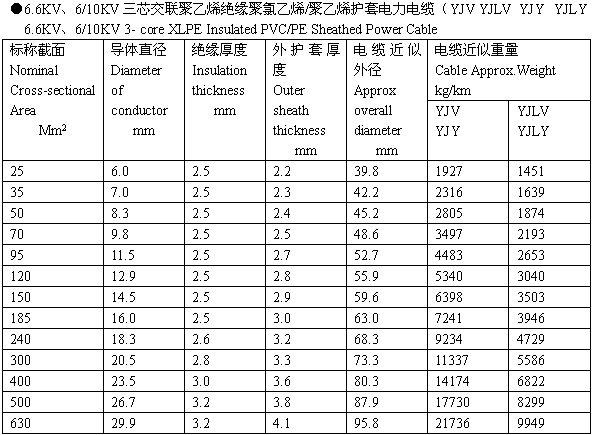

6/6、6/10kV（）

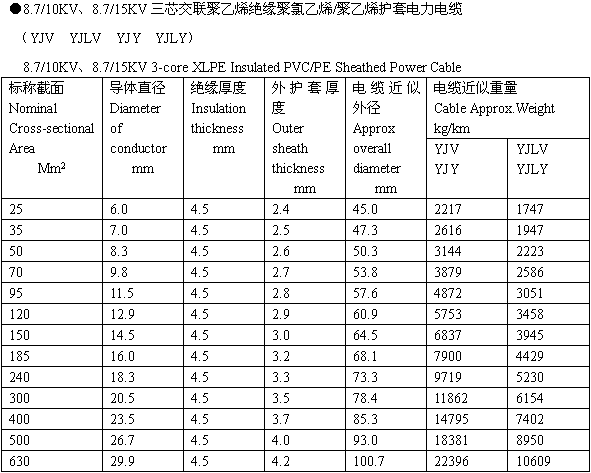

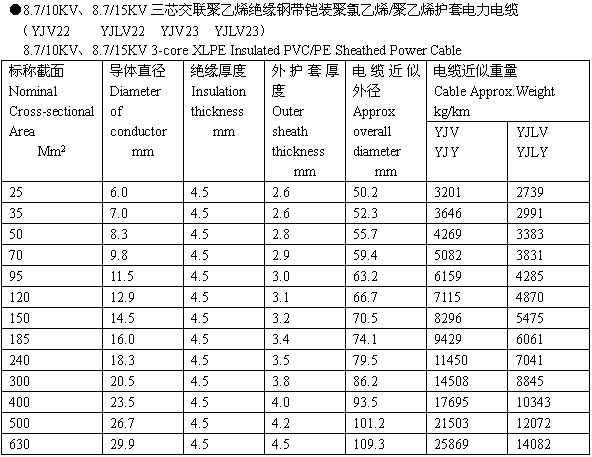

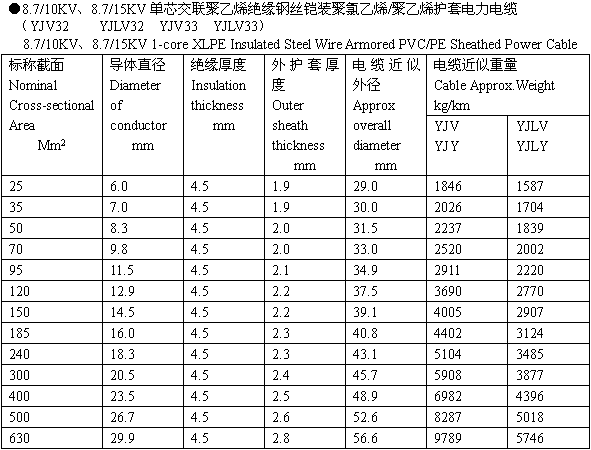

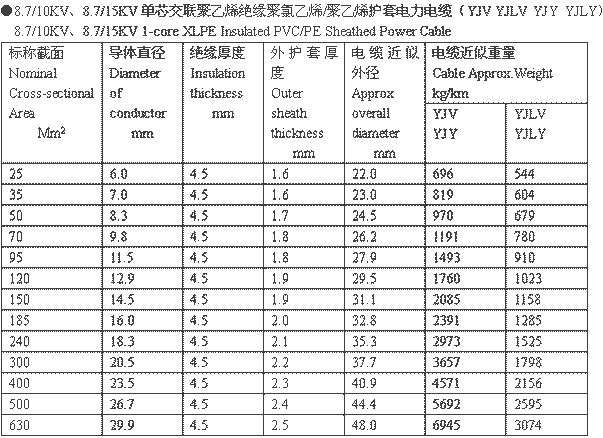

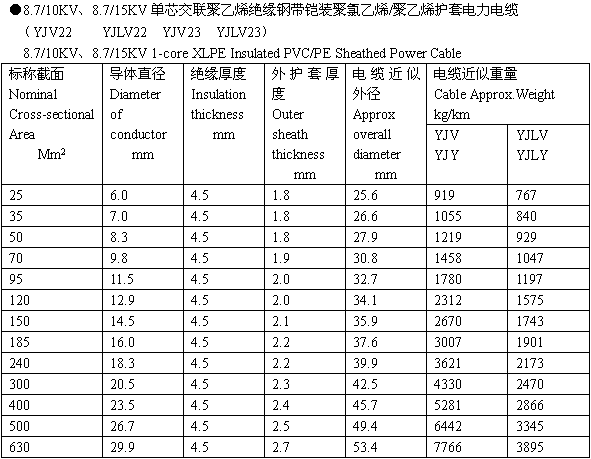

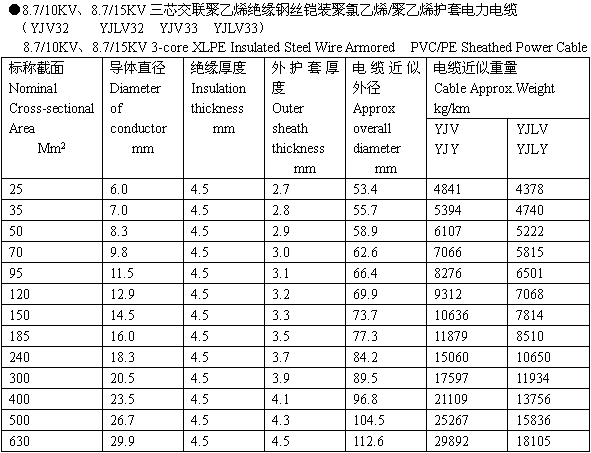

8.7/10、8.7/15kV（）
